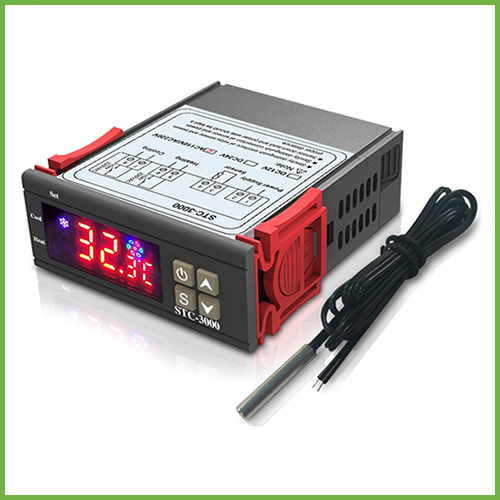

STC-3000 Temperature controller
This STC-3000 Temperature Controller includes a NTC 10K sensor and is designed to be used for heating and cooling. It is an excellent and convenient multifunction device for controlling temperature in Aquariums. The two 10 amp switched outputs can be connected to heaters, fans, and cooling system. The controller has a large LED display and easy to program.
Features:
Automatic over temperature alarm
Control temperature by setting the temperature set value and the different value
Celsius Display
Mini and light weight design
Large and clear LCD display
Dual heating and cooling function
Temperature Calibration
1 minute Sensor error delay
Wiring Diagram:
Specification:
Temperature measuring range: -50~99°C
Resolution: 0.1°C
Accuracy: ±1°C (-50~70°C)
Sensor error delay: 1 minute
Power supply: 220VAC±10%, 50/60Hz
Power consumption: 3W
Sensor: NTC sensor (1pc)
Relay contact capacity: Cool 10A/250VAC
Relay contact capacity: Heat 10A/250VAC
Compressor delay protection time: 1~10 minutes (adjustable)
Alarm Output: Buzzer
Dimensions:
Front panel size: 75(L) × 34.5(W) mm
Mounting size: 71(L) × 29(W) mm
Sensor length: 1m (include the probe)
Product size: 75(L) × 34.5(W) × 85(D) mm
Package Contents:
1 x Mini Digital Temperature Controller Thermostat
1 x Temperature sensor probe with cable
