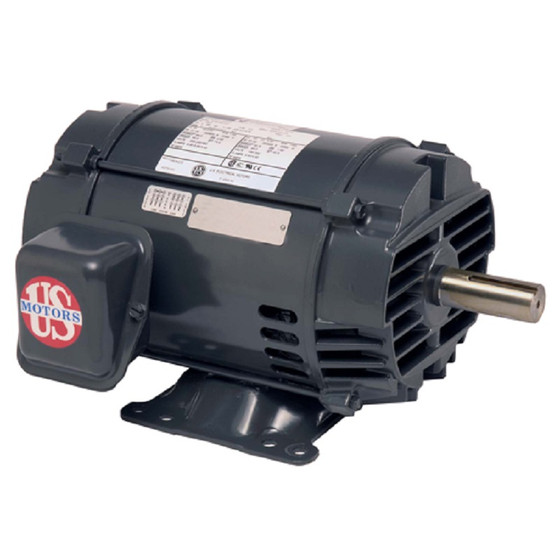

D20P1D Nidec | 20 hp 3600 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec

• 20 hp 3600 RPM, 36.0/18.0 amps 208-230/460V, 50/60hz. Three Phase
• NEMA 254T Frame Keyed Shaft 1-5/8″ Diameter x 4″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 22.6″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FP88
