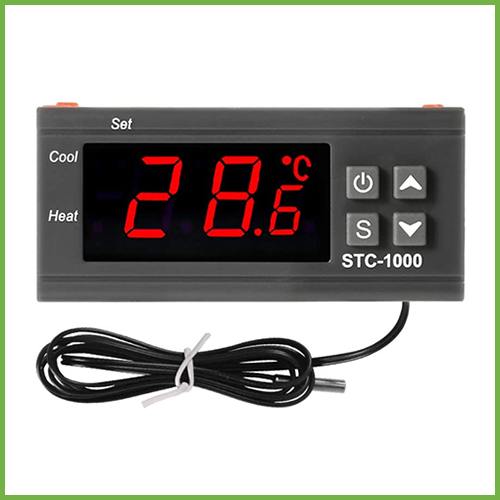

STC-1000 Temperature controller
This STC-1000 Temperature Controller includes a NTC 10K sensor and is designed to be used for heating and cooling. It is an excellent and convenient multifunction device for controlling temperature in Aquariums. The two 10 amp switched outputs can be connected to heaters, fans, and cooling system. The controller has a large LED display and easy to program.
Features:
Available in 2 models: 220 VAC and 12VDCAutomatic over temperature alarmControl temperature by setting the temperature set value and the different valueCelsius DisplayMini and light weight designLarge and clear LCD displayDual heating and cooling functionTemperature Calibration1 minute Sensor error delay
Wiring Diagram:
STC-1000 User Manual
Specification:
Temperature measuring range: -50~90°CResolution: 0.1°CAccuracy: ±1°C (-50~70°C)Sensor error delay: 1 minutePower supply: 220VAC±10%, 50/60Hz or 12 VDCPower consumption: 3WSensor: NTC sensor (1pc)Relay contact capacity: Cool 10A/250VAC or 12 VDCRelay contact capacity: Heat 10A/250VAC or 12 VDCCompressor delay protection time: 1~10 minutes (adjustable)Alarm Output: Buzzer
Dimensions:
Front panel size: 75(L) × 34.5(W) mmMounting size: 71(L) × 29(W) mmSensor length: 1m (include the probe)Product size: 75(L) × 34.5(W) × 85(D) mm
Package Contents:
1 x Mini Digital Temperature Controller Thermostat1 x Temperature sensor probe with cable1 x Instruction Manual
