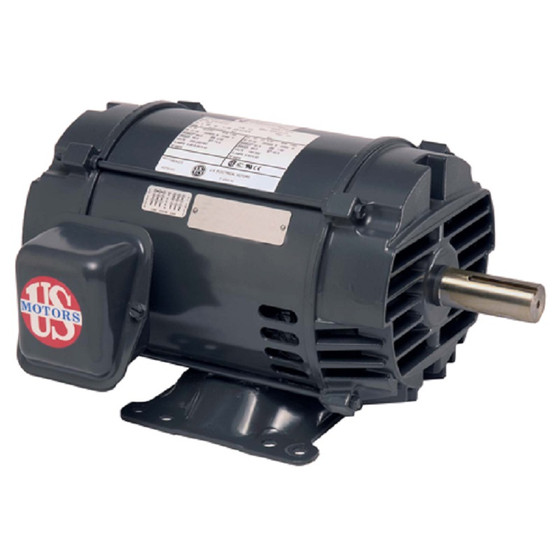

D25P2G Nidec | 25 hp 1800 RPM 284T Frame 575V ODP Electric Motor Nidec

• 25 hp 1800 RPM, 23.1 amps 575V, Three Phase
• NEMA 284T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 24.9″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model G73513
