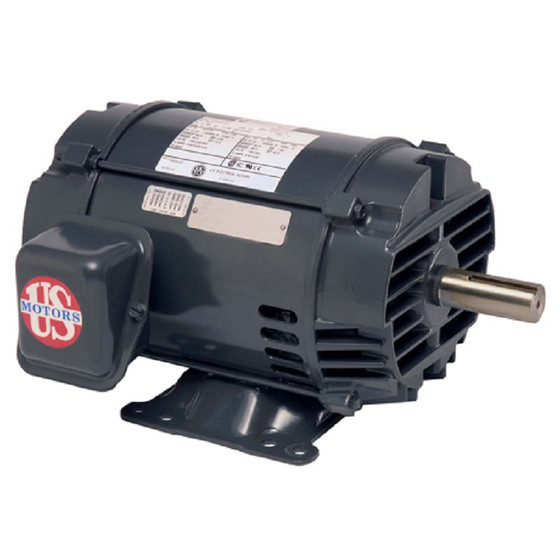

D25P2H Nidec | 25 hp 1800 RPM 284T Frame 200V ODP Electric Motor Nidec

• 25 hp 1800 RPM, 67.0 amps 200V, 50/60hz. Three Phase
• NEMA 284T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 23.2″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DB97, Dayton 263L69
