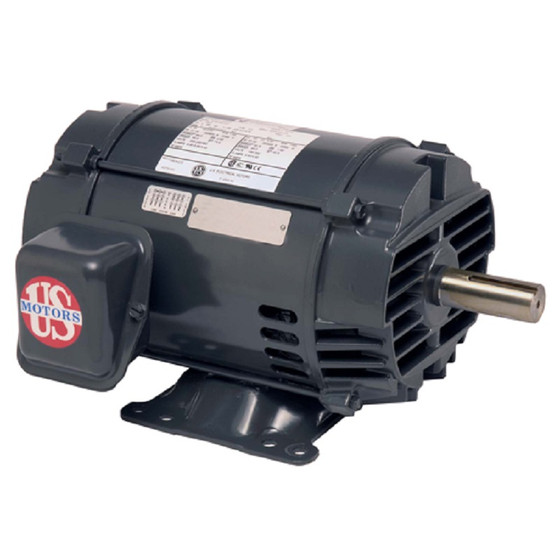

D20P3D Nidec | 20 hp 1200 RPM 286T Frame 208-230/460V ODP Electric Motor Nidec

• 20 hp 1200 RPM, 48.0/24.0 amps 208-230/460V, 50/60hz. Three Phase
• NEMA 286T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
• ODP; Service Factor: 1.15, Overload protection = None
• Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
• “C” Dimension 24.9″
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model DP92
