Hioki AC/DC Clamp Meter – Model CM4371

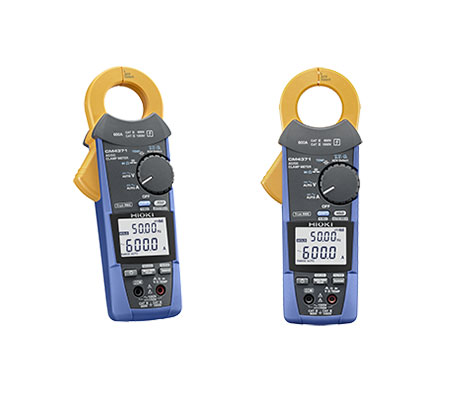

Hioki Clamp Meter CM4371
True RMS 600 A AC/DC Clamp Meter for the Toughest Situations
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Model CM4371 is a 600A True RMS clamp meter that features stronger jaws, broader -25℃ to 65℃ operating temperature range and IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability of up to 1700 V (*1) is ideal for the clamp maintenance inspections of electrical and solar power equipment. CAT IV 600 V, CAT III 1000 V Key Features • Multiple measurement functions • Automatic AC/DC function helps boost work efficiency • Measure DC voltages of up to 1700 V (*1) • Simultaneously measure inrush current in RMS and crest values • Expanded -25 °C to 65 °C operating temperature range • IP54 dustproof and waterproof enclosure *Jaws (current sensor portion): IP50 *1 Your instrument can be used to measure voltages in excess of 1000 V DC if and only if both of the following conditions are satisfied: 1. The circuit under measurement is isolated from the commercial power grid. 2. The circuit under measurement is isolated from ground. Hioki Clamp Meter Dealers, Distributors in Dubai UAE.
Ac Spare Parts Supplier in Huizhou China
中国惠州空调零配件供应商
We are the leading Wholesaler, Distributor, Supplier of Hioki AC/DC Clamp Meter – Model CM4371 in Yiwu China.
Hioki Manufacturer & factory in China.
我们是领先的批发商、分销商、供应商 Hioki AC/DC Clamp Meter – Model CM4371 在中国义乌。
| DC Current range | 20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range) |
|---|---|
| AC Current range | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: ±1.3% rdg. ±0.08 A (at 20 A) |
| Crest factor | 20.00 A range: 7.5 600.0 A range: 3 or less |
| DC+AC Current range | 20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy:±1.3% rdg. ±0.13 A (at 20 A) |
| DC Voltage range | 600.0 mV to 1500 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±3 dgt. |
| AC Voltage range | 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy: ±0.9% rdg. ±3 dgt. |
| DC+AC Voltage range | 6.000 V to 1000 V, 4 ranges, Basic accuracy: ±1.0% rdg. ±7 dgt. |
| Resistance range | 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±5 dgt. |
| Capacitance range | 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±5 dgt. |
| Frequency range | 9.999 Hz to 999.9 Hz, Basic accuracy: ±0.1% rdg. ±1 dgt. |
| Temperature (K) | -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C |
| Voltage detection | Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz |
| Other functions | Automatic AC/DC detection, Plus/Minus judgement function of DC A, DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment |
| Dustproof, waterproof | Grip: IP54 (when measuring an insulated conductor only), Jaw (the current sensor portion of the instrument)/ barrier: IP50 *Risk of electric shock from the conductor being measured increases when wet. |
| Power supply | LR03 Alkaline battery ×2, Continuous use 45 hr (Backlight OFF) |
| Core jaw diameter | 69 mm (2.72 in) W× 14 mm (0.55 in) D, φ33 mm (1.30 in) |
| Dimensions and mass | 65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz) |
| Accessories | TEST LEAD L9207-10, CARRYING CASE C0203, LR03 Alkaline battery ×2, Instruction Manual×1 |
