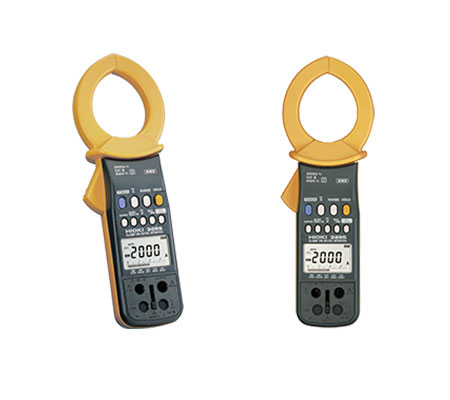

Hioki Clamp On AC/DC HiTester – Model 3285
Hioki Clamp On AC/DC HiTester
200A/2000A AC/DC Clamp Meters with Continuity Check and Resistance Testing or Analog Output
Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3285 clamp multimeter measure DC, AC or AC+DC current in live power lines without tapping into or connecting the lines, and includes a variety of features and functions including automatic zero adjustment that turns a normally troublesome task into a one-touch operation. Model 3285 comes with AC adapter and output terminals to enable connection to other instruments such as recorders. Key Features • Analog output for current measuring level, current measuring waveform, or frequency measuring level. • Peak hold function displays the crest value peak current up to 2840 A • AC+DC mode enables measurement of the RMS value of full- or half-wave rectified waveforms Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.
Ac Spare Parts Supplier in Foshan China
中国重庆空调备件供应商
We are the leading Wholesaler, Distributor, Supplier of Hioki Clamp On AC/DC HiTester – Model 3285 in Yiwu China.
Hioki Manufacturer & factory in China.
我们是领先的批发商、分销商、供应商 Hioki Clamp On AC/DC HiTester – Model 3285 在中国义乌。
| 3285 | 3285-20 (Discontinued) | |
| DC Current range | 200.0/ 2000 A, Basic accuracy: ±1.3 % rdg. ±3 dgt. | |
| AC Current range | 200.0/ 2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3 % rdg. ±3 dgt. |
|
| DC Voltage range | 30.00 V to 600 V, 3 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. | |
| AC Voltage range | 30.00 V to 600 V, 3 ranges (10 to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.0 % rdg. ±3 dgt. |
|
| Crest factor | 2.5 or less (1.42 at 2000 A, 1.7 at 600 V) | |
| Monitor, Analog output | DC, or AC 1 V/ f.s., Level output, Waveform output: DC to 15 kHz bandwidth (±3dB) | N/A |
| Resistance, Continuity check | N/A | 1000 Ω/ 10.00 kΩ, Basic accuracy: ±1.5 % rdg. ±5 dgt., Continuity: Beep sound at 30 Ω or less |
| Frequency range | 1.00 Hz to 1000 Hz, Basic accuracy: ±0.3 % rdg. ±1 dgt. | |
| Other functions | AC+DC mode, Maximum/ Minimum/ Average value record function, Data hold, Peak hold, Auto power off, Auto zero | |
| Display | Display refresh rate: 4 times/s (FAST), 1 time/3s (SLOW), 4 times/s (bar graph) | |
| Power supply | 6F22 (Stacked manganese battery) ×1, Continuous use: 25 hours, or AC adapter 9445-02/-03 | 6F22 (Stacked manganese battery) ×1, Continuous use: 20 hours, Cannot use with the AC adapter |
| Core jaw dia. | φ 55 mm (2.17 in) | |
| Dimensions and mass | 62 mm (2.44 in) W × 260 mm (10.24 in) H × 39 mm (1.54 in) D, 540 g (19.0 oz) |
|
| Accessories | Test Lead L9207-10 ×1, Carrying Case 9345 ×1, Hand strap ×1, 6F22 (Stacked manganese battery) ×1, Instruction manual ×1 | |
Air Conditioning & Refrigeration Spare Parts Suppliers in Dubai. Hioki Clamp On AC/DC HiTester Dealers, Distributors in Dubai UAE.
