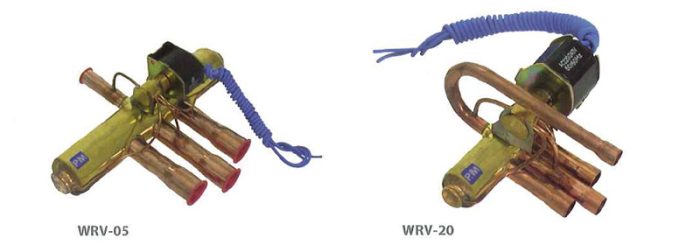

P&M 4-Way Reversing Valve – Model WRV-05
Service Accessory
Reversing Valve Principally Technology Parameter
| UPC No. | Item No. | Port Size (mm) | Allowable Substance | Nominal Capacity (KW) | Connection Slodering ODF | Pressure Differential | Max. Operating Pressure (Mpa) | Max. Fluid Temperature (oC) | Voltage | Inside Leakage (ml/min) | Allowable Power (HP) | ||||
| Charge | Discharge | ||||||||||||||
| (mm) | (in.) | (mm) | (in.) | Max. (Mpa) | Max. (Mpa) | ||||||||||
| 50700 | WRV-05 | 8 | R22 R134 R407C | 4.7 | 8 | 5/16″ | 9.5 | 3/8″ | 22.5 | 0.25 | 2.9 | -20oC – +120oC | AC220 or AC110 | < 1000 | 3/4 ~ 1.2 |
| 50701 | WRV-09 | 11.1 | 9 | 9.5 | 3/8″ | 12.7 | 1/2″ | 0.25 | < 1500 | 3/4 ~ 2 | |||||
| 50702 | WRV-11 | 11.5 | 11 | 12.7 | 1/2″ | 15.9 | 5/8″ | 0.34 | < 2000 | 2 ~ 4 | |||||
| 50703 | WRV-20 | 15.5 | 20 | 12.7 | 1/2″ | 19.05 | 3/4″ | 0.34 | < 4000 | 3 ~ 8 | |||||
| 50704 | WRV-34 | 20 | 34 | 19.05 | 3/4″ | 22.2 | 7/8″ | 0.34 | < 6000 | 7.5 ~ 12 | |||||
| 50705 | WRV-45 | 25 | 45 | 22.2 | 7/8″ | 28.6 | 1-1/8″ | 0.34 | < 6000 | 8 ~ 15 | |||||
| 50706 | WRV-05A | 8 | R410A | 6 | 8 | 5/16″ | 9.5 | 3/8″ | 3.1 | 0.34 | 4.15 | -20oC – +120oC | AC220 or AC110 | < 1000 | 3/4 ~ 1.2 |
| 50707 | WRV-09A | 11.1 | 12 | 9.5 | 3/8″ | 12.7 | 1/2″ | 0.34 | < 2000 | 3/4 ~ 1.5 | |||||
| 50708 | WRV-11A | 11.5 | 14.5 | 12.7 | 1/2″ | 15.9 | 5/8″ | 0.4 | < 2000 | 1 ~ 2 | |||||
| 50709 | WRV-20A | 15.5 | 27 | 12.7 | 1/2″ | 19.05 | 3/4″ | 0.4 | < 4000 | 4 ~ 8 | |||||
| 50710 | WRV-34A | 20 | 45 | 19.05 | 3/4″ | 22.2 | 7/8″ | 0.4 | < 5000 | 8 ~ 15 | |||||
| 50711 | WRV-45A | 25 | 60 | 22.2 | 7/8″ | 28.6 | 1-1/8″ | 0.4 | < 6000 | 15 ~ 20 | |||||
